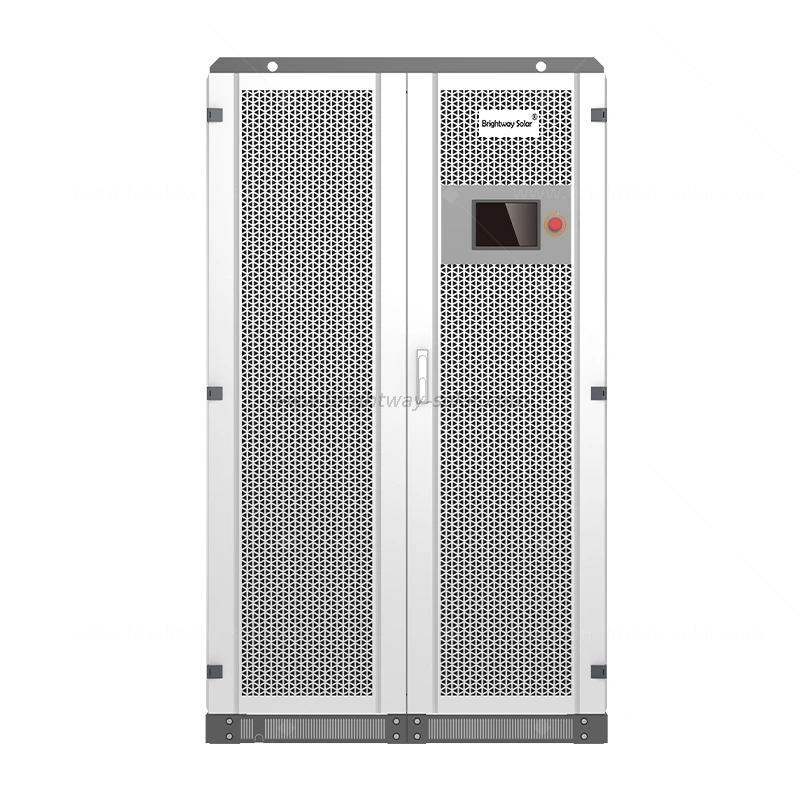

BWS-100KS-CP
Brightway Solar
Utilizing batteries with an extended lifespan (of at least 6,000 cycles), high efficiency (reaching 98%), and high-safety Lithium Iron Phosphate (LFP) cells, our system boasts several advanced features:
Active balancing technology to enhance battery efficiency, uphold consistency, and extend the cycle life.
A comprehensive fault and operational log recording system, ensuring comprehensive tracking and monitoring.
The capability to store log information for up to one month, providing ample time for analysis and troubleshooting.
Compatibility with RS485 and Ethernet communication protocols, facilitating remote monitoring and data exchange.
Adherence to the UL1973 safety standard, guaranteeing the highest levels of battery safety and reliability.
Technical Specifications
| Technical specification | BWS-100KS-CP |
| AC(on-grid) | |
| Max output power(kVA) | 110kVA |
| Rated power(kW) | 100kW |
| Rated voltage(V) | 400V |
| Rated current (A) | 144A |
| Voltage range(V) | 320V-460V |
| Rated frequency (Hz) | 50/60Hz |
| Frequency range(Hz) | 45-55/55-65Hz |
| THDI | <3% |
| Power factor | 1lagging~1leading |
| AC connection | 3W+N+PE |
| Transformer ratio | 270/400 |
| AC(Off Grid) | |
| Max output power(kVA) | 110kVA |
| Rated power(kW) | 100kW |
| Rated voltage(V) | 400V |
| Rated current(A) | 144A |
| THDU | ≤1% linear; or≤5% nonlinear |
| Rated frequency(Hz) | 50/60Hz |
| Overload capacity | 110% long-term |
| Photovoltaic input | |
| Max.PV input voltage(V) | 1000VDC |
| Max.PV power(kW) | 120/180/240KW |
| MPPT voltage range(V) | 200VDC-850VDC |
| MPPT voltage range@full load (V) | 450VDC-850VDC |
| Battery | |
| Battery voltage range(V) | 420V-850V |
| Max. charging power(kW) | 120/180/240KW |
| General data | |
| Dimension W*D*H(mm) | 1200/800/2050mm |
| Weight(kg) | 1120kg/1150kg/1180kg |
| Operation temperature | .-30℃ to +55℃ |
| Relative humidity | 0 ~95% non-condensing |
| Ingress protection | IP20 |
| Noise emission(dB) | <70dB |
| Altitude | 5,000m(>3,000 Derating) |
| Cooling | Air Cooling |
| Display and communication | |
| Display | LCD touch-screen |
| BMS communication | RS485/CAN |
| EMS communication | RS485, TCP/IP |
| Certificates | EN62109-1/-2， EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017,Pakistan & India IEC61727, IEC62116,IEC 61683 |
