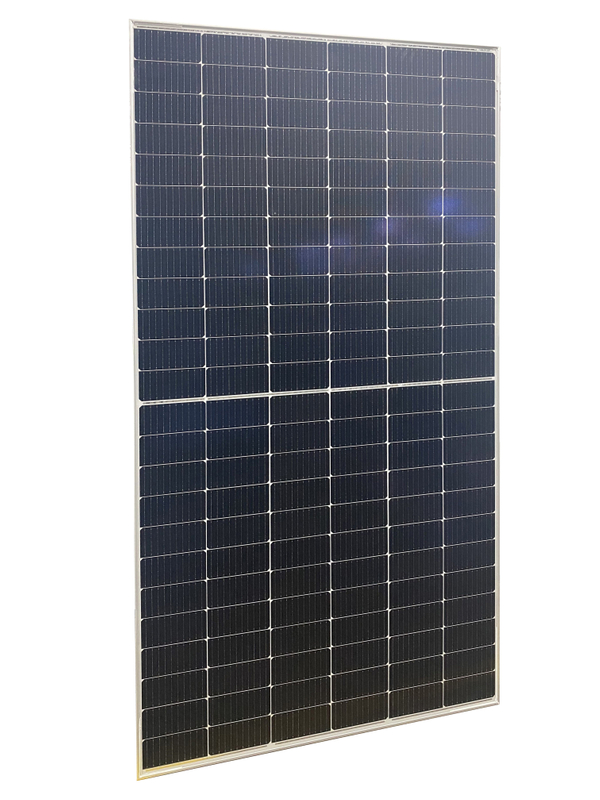

BWGP-540W(144）
Brightway Solar
The BWGP-540W (144) solar module offers peak performance with a maximum power output of 540Wp under standard conditions. Featuring 144 cells, it is designed for reliability and durability, operating efficiently within a wide temperature range of -40℃ to +85℃. This module is ideal for both residential and commercial solar energy systems, ensuring maximum energy production and conversion efficiency of 20.90%.
Technical Specifications
| Module Type | BWGP-540W(144） | |
| STC | NOCT | |
| Maximum Power (Pmax) | 540Wp | 402Wp |
| Maximum Power Voltage (Vmp) | 40.70V | 38.08V |
| Maximum Power Current (lmp) | 13.27A | 10.55A |
| Open-circuit Voltage (Voc) | 49.42V | 46.65V |
| Short-circuit Current (lsc) | 13.85A | 11.19A |
| Module Efficiency STC (%) | 20.90% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1000/1500VDC(IEC) | |
| Maximum series fuse rating | 25A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | 0.35%/℃ | |
| Temperature coefficients of Voc | -0.28%/℃ | |
| Temperature coefficients of Isc | 0.048%/℃ | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
