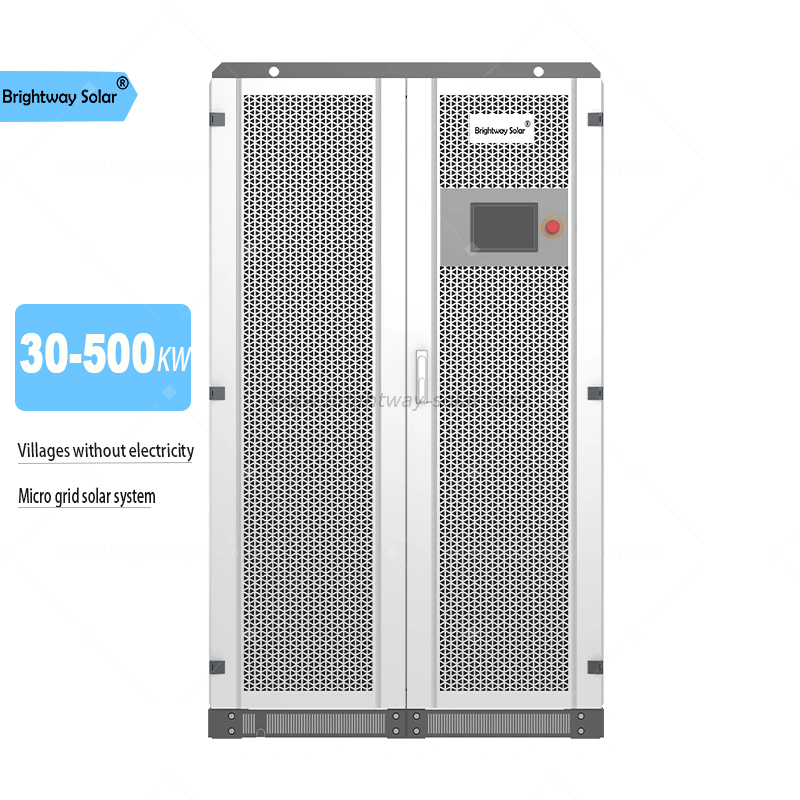

BWS-50KS-CP
Brightway Solar
A Hybrid Inverter represents a sophisticated energy conversion solution that efficiently transforms solar energy into AC power while simultaneously allowing for energy storage in a battery.
This inverter serves multiple purposes, enabling users to maximize self-consumption, safeguard energy in the battery for later use, or contribute surplus energy to the public grid. Its operational mode is flexible, adapting to the availability of PV energy and the individual preferences of the user.
During grid outages, it can serve as a backup power source, utilizing the stored energy in the battery along with the inverter's capabilities (harnessed from solar PV) to power essential needs. Furthermore, off-grid models offer a parallel function, expanding its utility and versatility.
Technical Specifications
| Technical specification | BWS-50KS-CP |
| AC(on-grid) | |
| Max output power(kVA) | 55kVA |
| Rated power(kW) | 50kW |
| Rated voltage(V) | 400V |
| Rated current (A) | 72A |
| Voltage range(V) | 320V-460V |
| Rated frequency (Hz) | 50/60Hz |
| Frequency range(Hz) | 45-55/55-65Hz |
| THDI | <3% |
| Power factor | 1lagging~1leading |
| AC connection | 3W+N+PE |
| Transformer ratio | 200/400 |
| AC(Off Grid) | |
| Max output power(kVA) | 55kVA |
| Rated power(kW) | 50kW |
| Rated voltage(V) | 400V |
| Rated current(A) | 72A |
| THDU | ≤1% linear; or≤5% nonlinear |
| Rated frequency(Hz) | 50/60Hz |
| Overload capacity | 110% long-term |
| Photovoltaic input | |
| Max.PV input voltage(V) | 1000VDC |
| Max.PV power(kW) | 60/120KW |
| MPPT voltage range(V) | 200VDC-850VDC |
| MPPT voltage range@full load (V) | 450VDC-850VDC |
| Battery | |
| Battery voltage range(V) | 320V-850V |
| Max. charging power(kW) | 60/120KW |
| General data | |
| Dimension W*D*H(mm) | 800/800/1900mm |
| Weight(kg) | 720kg/750kg |
| Operation temperature | .-30℃ to +55℃ |
| Relative humidity | 0 ~95% non-condensing |
| Ingress protection | IP20 |
| Noise emission(dB) | <70dB |
| Altitude | 5,000m(>3,000 Derating) |
| Cooling | Air Cooling |
| Display and communication | |
| Display | LCD touch-screen |
| BMS communication | RS485/CAN |
| EMS communication | RS485, TCP/IP |
| Certificates | EN62109-1/-2， EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017,Pakistan & India IEC61727, IEC62116,IEC 61683 |
