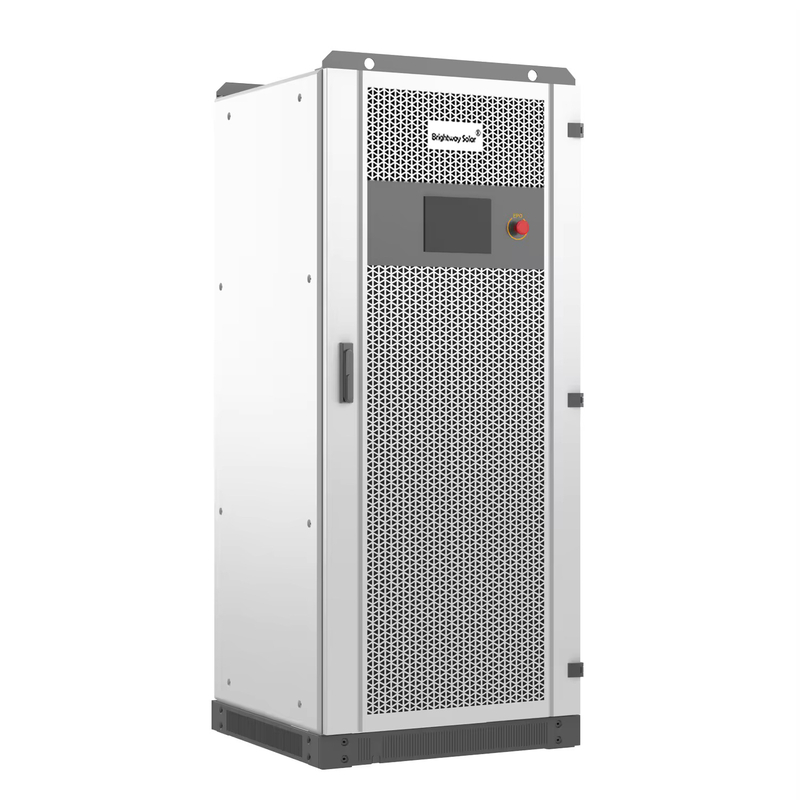

BWS-30KT-CP
Brightway Solar
Introducing the latest range of inverter-based power conversion systems, the BWS series, designed for both DC battery and AC grid connectivity, ensuring reliable and efficient power supply in various applications. The BWS series comes in various capacities, from the BWS-30KT-CP to the BWS-500KT-CP, to cater to the diverse needs of our customers.
Technical Specifications
| Model | BWS-30KT-CP |
| DC(battery) | |
| Voltage range (V) | 250V-850V |
| Max. Current (A) | 137A |
| AC(on-grid) | |
| Max output power(kVA) | 33kVA |
| Rate output power(kW) | 30KW |
| Rated voltage(V) | 400V |
| Voltage range(V) | 320V-460V |
| Rated current(A) | 43A |
| Max. output current(A) | 48A |
| Rated frequency (Hz) | 50/60Hz |
| Frequency range (Hz） | 45-55/55-65Hz |
| THDI | <3% |
| Power factor | 1lagging-1leading（Settable） |
| AC connection | 3W+N+PE |
| AC(off grid) | |
| Rated voltage(V) | 400V |
| THDU | ＜1% Linear ＜5% Nonlinear |
| Rated frequency(Hz) | 50/60Hz |
| Overload capacity | 110% long-term |
| General data | |
| Max.efficiency | 96.30% |
| Ingress protection | IP21 |
| Noise emission(dB) | <70dB |
| Operating temperature | －30～+55℃ |
| Cooling | Forced air cooling |
| Relative humidity | 0~95% non condensing |
| Altitude | 5000m (derating above 3000m) |
| Dimension W*D*H (mm) | 800×800×1900mm |
| Weight(kg) | 605kg |
| Transformer ratio | 100/400 |
| Self-consumption (W) | <10W |
| On/ Off grid switching | Automatic |
| Display and communication | |
| Display | LCD touch-screen |
| BMS communication | RS485/CAN |
| EMS communication | RS485，TCP/IP |
| Certificates | IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC |
